Sump Pump Installation NJ | Battery Backup & Expert Setup

A transparent, professional installation follows a predictable sequence: inspection, pit preparation, pump selection, discharge routing, electrical hookup, testing, and final restoration. Our licensed crew documents existing drainage, inspects floor and foundation conditions, and recommends a system tailored to the home’s layout and risk profile. That method reduces surprises and delivers a dependable system that integrates with broader waterproofing strategies. Below are the installation phases and an overview table that summarizes time, cost impact, and expected outcomes for each step.

The professional installation process typically includes these major steps:

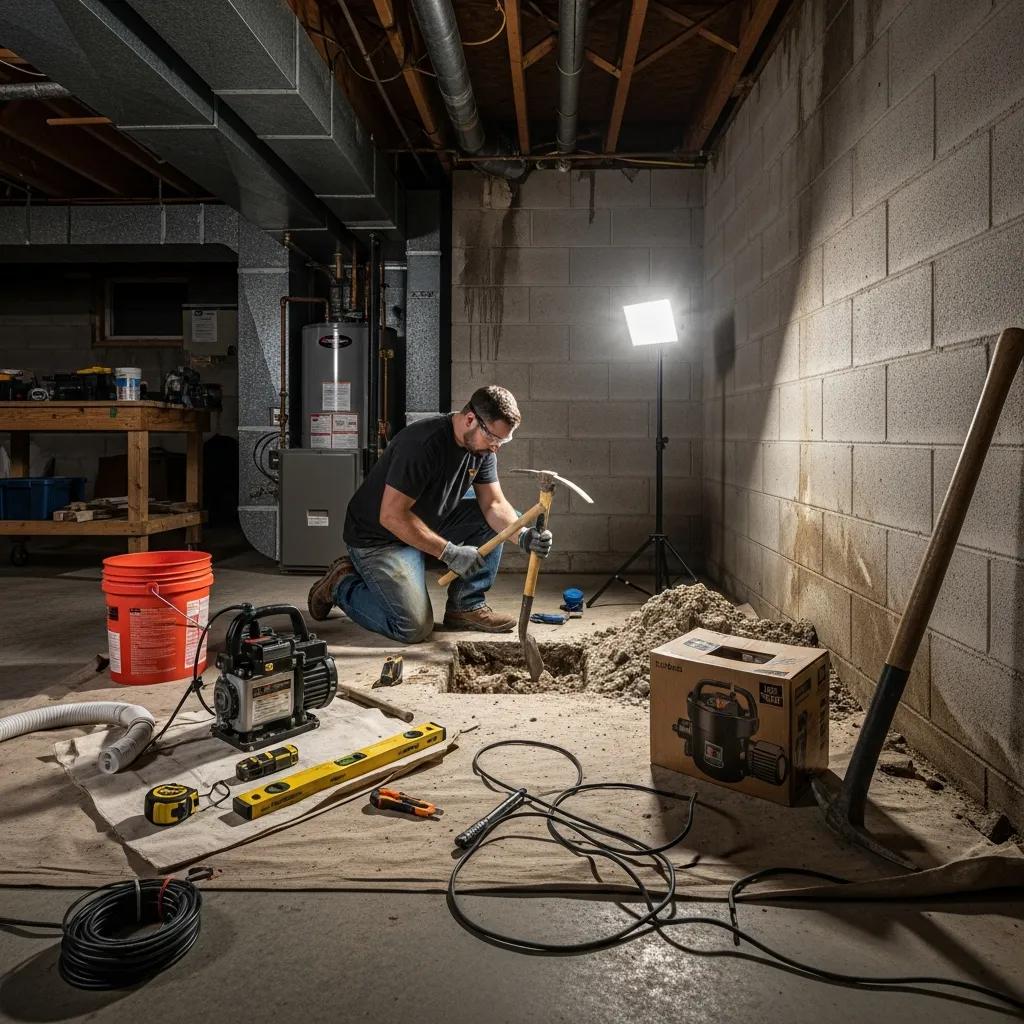

During excavation we remove concrete and soil to create a stable cavity sized for the chosen pump and future service access, using core cutting when it minimizes disruption. A fitted liner or riser protects the pit from collapse and provides a clean mounting surface for the pump and float. We select pit depth and diameter to balance capacity and service clearance, manage debris to keep the work area tidy, and patch concrete to match the surrounding floor so the finished result is both functional and neat.

Proper installation sets the pump on a solid base, secures the float switch to prevent interference, and installs a check valve on the discharge line to stop backflow. Discharge piping is routed to move water away from footings and neighboring properties, accounting for freeze risk with insulated runs or IceGuard options, and following municipal rules on stormwater discharge where required. We size pipes, choose fittings to reduce friction loss, and provide access points for servicing. A documented routing plan and photographs help with permits and future reference.

Final restoration includes concrete patching, smoothing finishes, debris removal, and a walkthrough to explain system operation, warranty details, and maintenance needs. Crews use compatible patching compounds for durable repairs and restore disturbed finishes so they blend with existing surfaces. We label the pump location, photograph routing for records, and hand over service documentation so homeowners know what to monitor and when to schedule maintenance. A clear handoff makes future upkeep easier and reduces confusion.

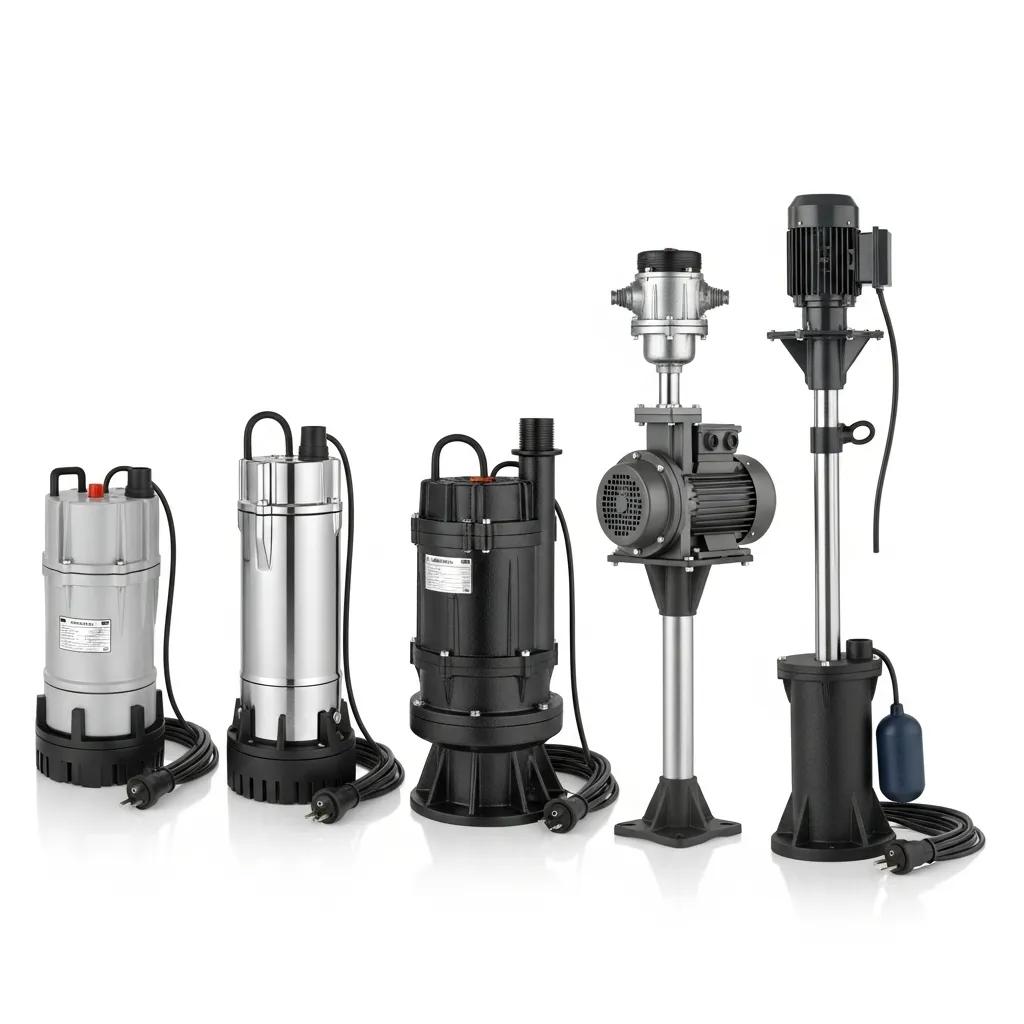

Homeowners can choose submersible, pedestal, battery backup, or water‑powered pumps — each has tradeoffs in noise, lifespan, cost, and maintenance. The right choice depends on how finished the basement is, expected water volume, budget, and tolerance for outage risk. The table below compares typical attributes to help match pump type to your needs and environment.

Submersible pumps sit in the pit and run quietly since the motor is below floor level, making them a good fit for finished basements. They typically handle higher volumes and debris better, and their compact profile preserves usable floor space. Although unit cost and installation can be higher than pedestal models, their performance during heavy inflows and lower noise make them a solid investment where frequent cycling or large volumes are expected.

Battery backup systems run a secondary pump or power the primary when the grid fails; runtime depends on battery capacity and pump draw. Backups are critical where storms and utility outages coincide, and they reduce reliance on overwhelmed municipal systems during extreme weather. When considering a backup, evaluate battery type, expected runtime under various inflow scenarios, and maintenance needs like periodic testing and battery replacement. Adding a backup is a resilience‑first choice that addresses a common failure mode.

Water‑powered pumps use municipal pressure to move water without electricity, which can be useful when battery maintenance is a drawback and municipal pressure is reliable. They don’t rely on stored energy, but they consume potable water and may be restricted by local rules or discouraged in drought conditions. They’re appropriate when long outages are likely and the homeowner accepts the tradeoff of water use for continuous backup operation. Always check local regulations before choosing this option.

Final cost depends on pump type and brand, whether you need a new pit or can reuse an existing one, required concrete cutting, the distance and routing for discharge piping, and electrical upgrades like a dedicated circuit or GFCI protection. Other factors include permit requirements and freeze‑protection measures for exterior runs. Adding a high‑capacity battery backup or tying the sump into a French drain raises upfront cost but can lower long‑term emergency expenses. A thorough inspection identifies which factors apply and explains the value of each recommended upgrade.

To illustrate: a basic pedestal install with minimal pit work usually lands near the low end of the range; a submersible system with a new pit and check valve typically sits in the mid‑range; and adding a battery backup or extensive discharge routing pushes costs higher. Example scenarios include a simple utility‑basement pedestal install, a finished‑basement submersible system with a new pit, and a full system with battery backup for high‑risk locations. Schedule a free inspection for a precise quote tailored to your home and local rules.

Use this seasonal maintenance checklist as a starting point:

Watch for frequent short‑cycling, grinding or unusually loud noises, continuous running without lowering the pit water, or complete failure to start during high water conditions. These symptoms often point to float problems, clogged intakes, bearing failure, or motor wear and should be addressed promptly to avoid basement flooding. If you notice these signs, turn off power only if it’s safe, clear accessible debris, and call a licensed technician for diagnosis. Early action usually costs less than emergency replacements and lowers damage risk.

Experts recommend an annual professional inspection and seasonal homeowner checks — especially before spring thaw and hurricane season — to make sure both primary and backup systems are ready for peak demand. Annual service typically includes electrical testing, impeller inspection, check valve verification, and a battery health check for backups. Seasonal checks involve running the pump, verifying float travel, and confirming discharge routing remains clear. Keep a simple service log with dates and observations to make troubleshooting easier and to support warranty or insurance questions.

Licensed in‑house technicians provide consistent quality control, clear accountability, and training to follow company standards for pit excavation, pump mounting, and electrical integration. Using direct employees simplifies permit coordination, inspection scheduling, and warranty paperwork, avoiding the communication gaps that can happen with subcontracted crews. That approach helps ensure installations meet local safety and routing expectations and preserves institutional knowledge about common NJ site conditions. Homeowners benefit from predictable scheduling, standardized procedures, and a single point of contact for follow‑up.

We start with a site‑specific assessment to guide pump selection, pit sizing, and backup choices that match your property’s risk profile and priorities. Pairing a primary submersible pump with a battery backup, or integrating the sump with a French drain or targeted dehumidification, addresses both flood events and ongoing moisture issues. Tailored discharge routing and freeze‑protection reduce recurring maintenance and lower the chance of winter failures, while documented installation standards and service recommendations make upkeep straightforward. This design‑first approach balances upfront cost with long‑term value and resilience.
